Get Smarter Testing Tools for Fiber Networks
Rely on VIAVI for smarter test solutions to help you get the job done right the first time.
VIAVI Tools and Bundles

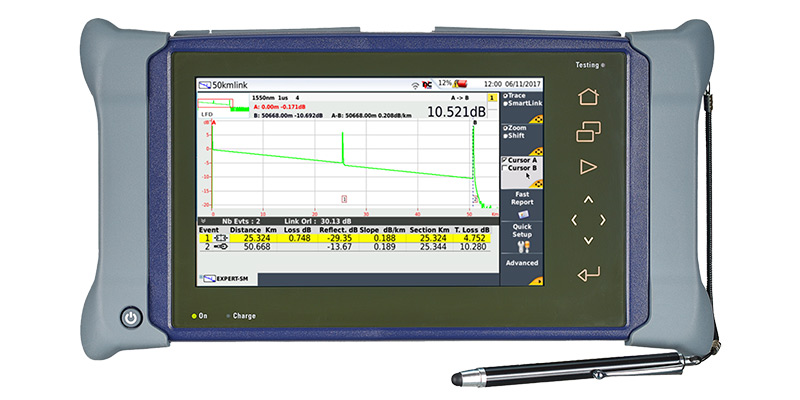

Modular Bi-directional Fiber Tester T-BERD 4000 FiberComplete
• T-BERD 4000v2 1310/1550nm B FiberComplete – IL/ORL and OTDR Unit
Automatically performs bi-directional Insertion Loss and Optical Return Loss tests at both wavelengths (1310nm and 1550nm) in less than 4 seconds. Also automatically shoot bi-dir OTDR trace with 42/40dB of DR at 1310/550nm.
Applications:
FTTH / xPON / P2P fiber network construction end-to-end tests, fiber certification Bi-Dir tests.
• T-BERD 4000v2 1310/1550nm B FiberComplete-Ready Test Set Unit – 1310/1550nm – APC
Automatically performs bi-directional Insertion Loss and Optical Return Loss tests at both wavelengths (1310nm and 1550nm) in less than 4 seconds. Fault Finder mode to indicate issue on the fiber. Upgradable to FiberComplete with field SW License (including fully functional OTDR).
Applications:
FTTH / xPON / P2P fiber network construction Bi-Dir basic tests.

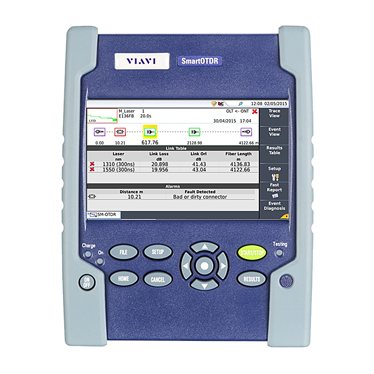

Handheld OTDR SmartOTDR
• SmartOTDR 1310/1550nm and Filtered 1650nm with PM VFL WiFi and FTTH-SLM
40/40//41dB OTDR @1310/1550nm and Filtered 1650nm with Broadband Power Meter and CW Light Source and FTTH-SLM Premium SW app, testing end-to-end, through several splitters and/or Taps.
Applications:
FTTH / xPON / P2P fiber network construction end-to-end tests, live fiber maintenance OTDR tests.
• SmartOTDR 1310/1550nm and Filtered 1650nm with PM VFL WiFi and FTTH-SLM
37/35/32dB OTDR @1310/1550nm and Filtered 1650nm with Broadband Power Meter and CW Light Source.
Applications:
FTTH / xPON / P2P fiber network access tests, live fiber maintenance OTDR and selective xPON power meter tests.

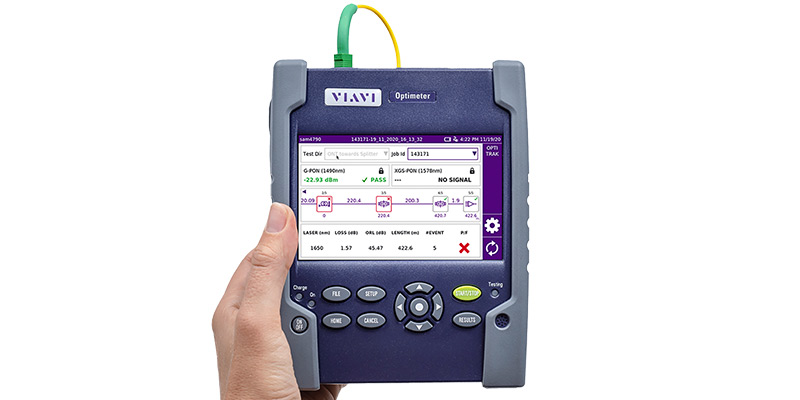

Optimeter
Last Mile FTTx Test and Certification
• Optimeter Fiber Tester PRO Kit F1650nm – APC
Fiber Meter @1650nm with Dual-band Selective Power Meter (1490/1550nm or 1490/1577nm), VFL, WiFi/Bluetooth and OptiTrak App SW. Carrying case, glove and 20m launch cable included.
Applications:
FTTH / xPON / P2P fiber network access tests, live fiber maintenance OTDR and selective xPON power meter tests.

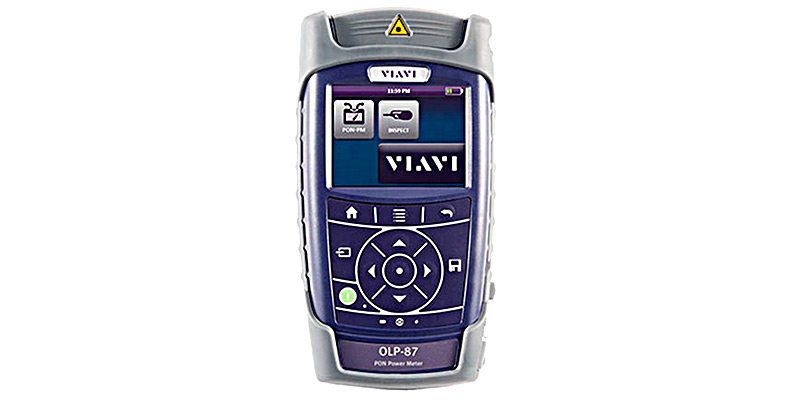

Selective PON/XGS-PON Power Meter SmartClass OLP-87
• OLP-87 XG-PON 1270/1310/1490/1550/1578nm APC SC mounted
XG-PON and G-PON Selective Power Meter for GPON (1310/1490nm), XG- PON (1270/1578nm) and RF Video (1550nm).
Applications:
FTTH / xPON / P2P fiber network activation and maintenance selective xPON power meter tests.
FiberScope P5000i Probe
• Kit FBP-P5000I Digital Probe FiberChek Pro SW Case And Tips
Microscope Probe to inspect Fiber Optic connectors – Includes SC-PC, SC-APC and LC-PC tips allowing inspection of any 2,5 (PC and APC) or 1,25mm PC ferrule connector, FC-PC, SC-PC, SC-APC and LC-PC headends. Works with SmartOTDR, Optimeter, DSAM, ONX, HST3000, T-BERD, OLP-8x (SmartClass Fiber), laptop.
Applications:
Fiber optic connections inspection and troubleshooting.

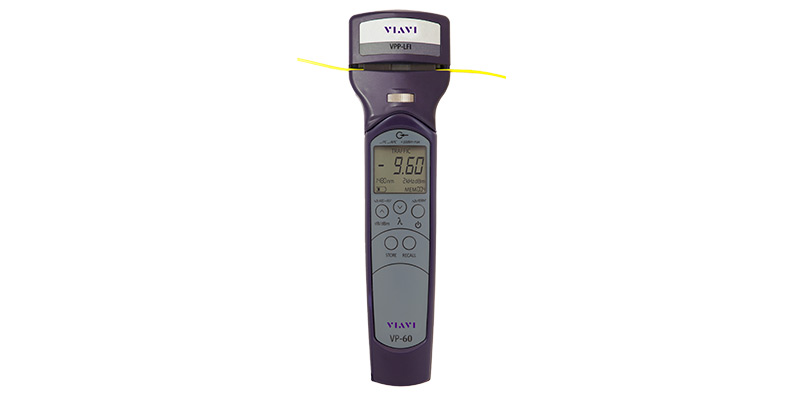

FI-60 Live Fiber Identifier
• FI-60 Fiber Identifier with Power Meter
Fiber Identifier with Power Meter. Detects live traffic and tones but does NOT indicate DIRECTION. Power Meter includes 2.5m & 1.25m adapters
Applications:
Fiber maintenance, live fiber identifier and broadband power meter.

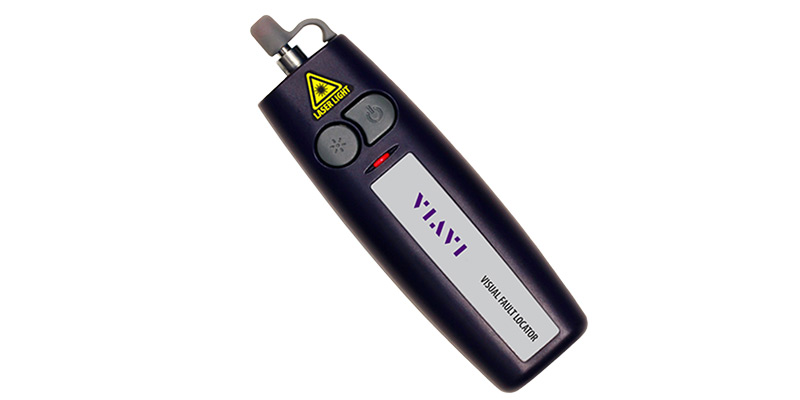

Visual Fault Locator
• Visual Fault Locator (Pocket Size)
With 2.5mm (SC, FC, ST) and 1.2mm (LC) adapters
Applications:
Fiber optics construction and maintenance, red light visual fault locator.

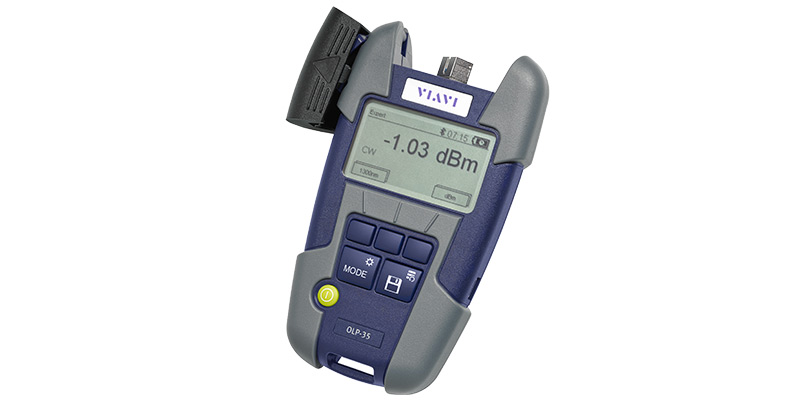

Broadband Power Meter
• OLP-35V2 (+10 dBm) Broadband Power Meter
w 2.5mm UPP adapter, AA alkaline batteries. Wavelength settable from 800-1650nm (in 1 nm increments). Includes Bluetooth w ability to upload test results (via Mobile Tech App) to StrataSync.
Applications:
FTTH / PON / P2P fiber network Construction, Activation and Maintenance Broadband Power Meter tests
Fiber Inspection with The FiberChek™ Probe, the all-in-one handheld
PON INSPECTION AND TESTING SOLUTIONS
WHY VIAVI ESSENTIAL TOOLS FOR FIBER AND WIRELESS OPTIMIZE PROJECT SOLUTIONS
Contact us to learn more about pricing details:
sales@telonix.ca
888.835.6649
TELONIX stands behind every product sold, with unmatched technical support.
