V2
Robust and Compact Fiber Blowing Machine for Fiber Installation.
Robust and compact pneumatic operated fiber blowing machine with the unique Joystick controller securing optimal control of the installation. This machine can be configured for cables ranging from 2.4 to 16 mm and conduits from 7 to 20 mm (microduct) and 0.75 to 2.0 inches (Smooth wall Conduit). Anodized aluminum construction makes this machine both lightweight and easy to maintain.
Throughout 2024, we have been working on upgrading our Jetting V2 machine with a range of improvements to enhance its performance and usability.
Key updates include:
-
- Larger Display: A bigger, clearer display for improved readability.
- Display Sleep Function: The display turns off automatically when inactive.
- Improved Menu: Redesigned menu for an easier and better user experience.
- Improved Battery Life: Extended battery life of up to 50 hours using three AA batteries.
- Quick Release Belt Drive: Belt drives can now be replaced in seconds thanks to our new quick-release mechanism.
- Quick screws for Belt Protection: Remove/attach the guards in seconds
(The machine must never be operated without belt protection.) - Water Separator with Auto Drain: A built-in water separator featuring an automatic drain function.
- New aluminum handle: Improved ergonomic balance
V2 FIBER BLOWING MACHINE
- Pneumatic operation, double motors.
- Electronic counter for speed and distance.
- Gentle operation with 450 mm belt length.
- Display for speed, distance and pressure in conduit.
- Max. speed: 656 ft/min, max. pushing force on cable: 123.5 lbf.
- Adjustable clamping force.
- Works with JetLogger
- Afterblower
- Floating kit
- 9-12 V adaptor. For replacing 9V battery for digital display.
- Conduit air quick release valve
- Joystick Controller with forward and reverse function.
STD Configuration
- Transport case
- Extra fixtur
- 1 bottle Micro Duct Lube
- 1 bottle Duct Lube
- 1 bottle pneumatic oil
- Service kit
TRIGGAIR FIBER BLOWING MACHINE
| Max pressure: | 232 PSI |
| Pushing force: |
Up to 123.5 lbf |
| Cable diameter: | 2,4-16 mm |
| Microduct: | 7-20 mm |
| Smooth wall Conduit | 0.75″-2.0″ |
| Weight: | 23 pounds |
| Air connection: | 3⁄4“ Claw connector |
| WxHxD: | 16.5 x 9.1 x 17.7 inches. |
ACCESSORIES FOR V0 HD
- Afterblower
- Floating kit
- 9-12 V adaptor. For replacing 9 V battery for digital display
- Jetlogger
- Duct clamps
- Cable guides

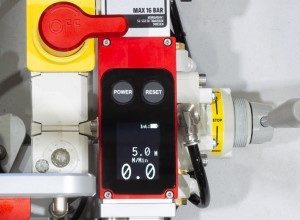

Large and clear display with battery life of up to 50 hours

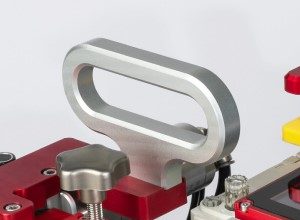

New Handle for Improved Ergonomic Balance

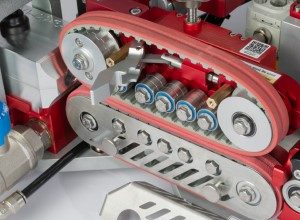

Belt Drive Quick Release

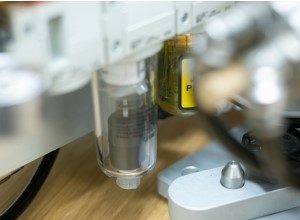

Water Separator
NEW JETTING VIDEO
TELONIX stands behind every product sold, with unmatched technical support.
